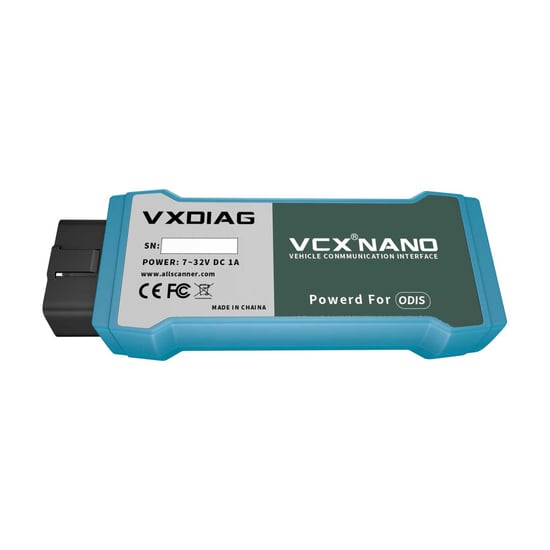

ALLScanner VCX NANO for Volkswagen USB / WIFI PW890 ODIS Diagnostic Tool
Guaranteed Safe Checkout
Features & Compatibility
ALLScanner VCX NANO for Volkswagen USB / WIFI PW890 ODIS Diagnostic Tool
Product Description:
New ALLScanner VCX NANO for Volkswagen USB / WIFI PW890 ODIS Diagnostic Tool Support UDS Protocol
Diagnostic Tools From ALLScanner with Product Number: MK17805
This Weight Product: 250g
Specs:
Manufacturer: ALLScanner
Condition: New
Vcx-nano is a standardized VCI vehicle diagnostic interface, based on sae-j2534 and iso-22900 PDU international standard design, compatible with most of the vehicle communication protocols, compact design, is an ultra-high cost performance of the original diagnostic interface. VCX nano is widely used in ECU online diagnosis and programming by vehicle manufacturers. It also supports third-party and original diagnostic software.
Original diagnostic functions
- The original factory level diagnostic function for various brand models supported, can replace expensive OEM equipment.
- All kinds of advanced diagnostic functions are completely consistent with the original factory, and the performance even exceeds the original factory.
- One click installation, original support driver and online upgrade, easy to use.
Meet the automotive industry standard design
- SAE-J2534-1/2 Pass-Thru with EURO 5
- ISO-22900 MVCI & D-PDU
- J2534 original factory level ECU programming functions.
PC communication interface
- Support USB2.0 high speed connection
- Support 802.11b Wi Fi wireless connection
- The PC configuration management tool provided automatically detects connections and updates firmware.
High performance vehicle diagnostic interface
- Vcx-nano with high speed processor is a high performance vehicle network interface.
- It can support most standardized and original private vehicle bus protocols.
- It can support up to 4-way can: 3-way high-speed can and single line can.
- Support multi-channel work at the same time, for example: support 2-wire can or K-wire work at the same time.
- Support programming voltage output: 5V ~ 20V FEPS output (Ford)
- Compact design of integrated OBD-II interface can be connected directly with vehicle.
Hardware specifications
- Protocol processor 32bit 180MHz ARM
1MB FLASH
- Diagnostic interface SAE-J1962 standard, OBD-II diagnostic interface
- Wired interface (PC) USB Micro-B interface
- Wireless interface (PC) WLAN 802.11 b/g/n wireless network (Optional)
- Indicator lights 2 LEDs, Red: device status, Blue: communication status.
- Power supply Vehicle power supply: DC 9v-36v (compatible with 12V and 24V)
- Power 1W
- Size L x W x H = 140 x 50 x 25 (mm)
- Weight Equipment weight: 0.3KG, Product + package weight: 0.8kg
- Shell Reinforced plastic shell
- Working temperature -20～+70 °C
- Storage temperature -40～+85 °C
- Standard certification Comply with EU CE and US FCC
Supported vehicle bus protocols
- ISO-9141 K-Line
- ISO-14230 K-Line
- ISO-15765 CAN
- SAE-J1850-VPW (GM Class2)
- SAE-J1850-PWM (FORD SCP)
- SAE-J2411 SWCAN (GMLAN)
- VAG TP20 CAN (SAE-J2819)
- VAG TP16 CAN
- VAG KW81 (SAE J2818)
Additional information
| Manufacturer | |
|---|---|
| Skoda | |
| Volkswagen | |
| Audi | |
| Seat |
