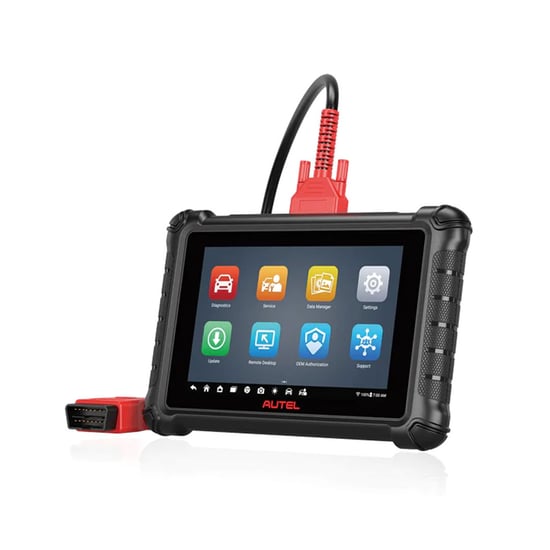

New Autel Maxicheck MX900 Diagnostic Tool Product Description:
New Autel Maxicheck MX900 Diagnostic Tool is an all-system diagnostics tablet, compatible with U.S., Asian, and European vehicles, 1996 and newer. The eight-inch touchscreen Android-based tablet features a quad-core processor for maximum speed and efficiency.
Diagnostic Tools From Autel with Product Number: sk15352
This Weight Product: 3000g
Important Notes for Autel Maxicheck MX900 :
- 2 Years update subscription is included with the device.
- Ip Restriction (works only in India, Middle East and Africa ).
New Autel Maxicheck MX900 Diagnostic Tool Specs:
Manufacturer: Autel
Condition: New
- 8-inch high-resolution, responsive touchscreen display
- Android 11 operating system offers advanced streamlined functionality
- Extensive vehicle coverage for U.S., Asian, and European vehicle makes
- Exceptional OE-Level system coverage for all electronic systems
- Complete code, live data, ECU information, active test, and special function capabilities
- Supports the latest communication protocols, including DoIP and CAN FD
- Smart AutoVIN technology for quick and accurate vehicle identification
- Expansive menu of service and maintenance tasks
- Detailed Pre- and Post Scan Reporting
- Automatic system and software updates with real-time Wi-Fi push notifications
- Remote Access Technical Support Troubleshooting
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Convenient data management system for managing internal applications and reviewing data
Autel Maxicheck MX900 Diagnostic Tool Specifications :
| Operating System | Android 11 |
| Processor | Quad core Processor(1.8GHz) |
| Memory | 4GB RAM & 64GB ROM |
| Display | 8-inch LCD capacitive touchscreen with 1280×800 resolution |
| Rear Camera | 8 MP |
| Connectivity | USB Type-C |
| USB 2.0 | |
| Wi-Fi | |
| Mini SD card (supports up to 64GB) | |
| Audio Input/Output | Input: N/A |
| Output: buzzer | |
| Power and Battery | 3.7 V/7700mAh lithium-polymer battery |
| Charges via 5 VDC power supply | |
| Battery Charging Input | 5V/3 A |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -10 to 60°C (14 to 140°F) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD |
Autel Maxicheck MX900 Diagnostic Tool Comparison :
| MaxiDAS DS900 | MaxiCheck MX900 | MaxiDAS DS808 | MaxiDAS DS808TS | |
| Read Codes | √ | √ | √ | √ |
| Erase Codes | √ | √ | √ | √ |
| Live Data | √ | √ | √ | √ |
| ECU Information | √ | √ | √ | √ |
| Active Test | √ | √ | √ | √ |
| Service Functions | √ | √ | √ | √ |
| Complete OBD Diagnostics | √ | √ | √ | √ |
| Pre & Post Scan | √ | √ | — | — |
| Scan VIN | √ | √ | — | — |
| ECU Coding | √ | — | √ | √ |
| Guided Function | √ | — | √ | √ |
| Tire Pressure Monitoring System | Basic | Basic | Basic | Complete |
| Immobilizer Function | Basic | Basic | Basic | Basic |
| Advanced TPMS Diagnostics for Complete TPMS Health Check | — | — | — | √ |
| Activate All Known TPMS Sensors | — | — | — | √ |
| Program AUTEL MX-Sensors | — | — | — | √ |
| Comprehensive OBD relearn coverage | — | — | — | √ |
| On-screen Relearn Procedure | — | — | — | √ |
| DoIP | √ | √ | — | — |
| CANFD | √ | √ | √（optional adapter） | √（optional adapter） |
| Battery Analysis | — | — | — | √ |
| Videoscope | √ | √ | √ | √ |
| Processor | Quad-core 1.8GHz | Quad-core 1.8GHz | Quad-core 1.6GHz | Quad-core 1.6GHz |
| Operating System | Android 11 | Android 11 | Android 4.4.4 | Android 4.4.4 |
| Memory | 4G + 64G | 4G + 64G | 1G + 64G | 1G + 64G |
| Display | 8″ LCD | 8″ LCD | 7″ LCD | 7″ LCD |
| Battery | 7700mAh | 7700mAh | 5000mAh | 5000mAh |
| Internet Updatable | Wi-Fi | Wi-Fi | Wi-Fi | Wi-Fi |
| Multilingual Support | √ | √ | √ | √ |
| Historical Test Records | √ | √ | √ | √ |
| Save and Playback Data | √ | √ | √ | √ |
| Wi-Fi Print | √ | √ | — | — |
| Vehicle communication method | Wired | Wired | Wired | Wireless (bluetooth) |
Autel Maxicheck MX900 Diagnostic Tool Packing List :
