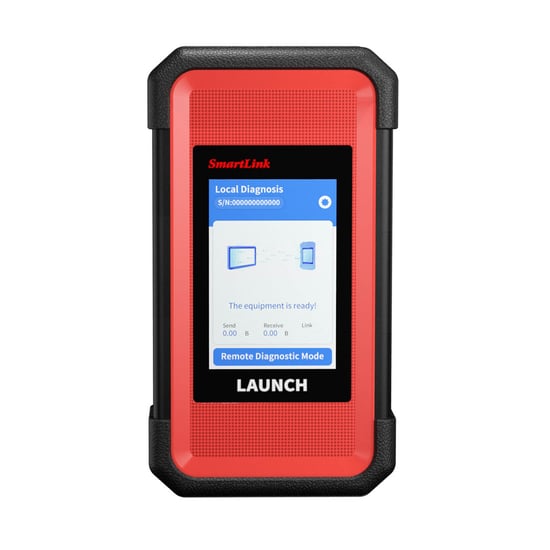

Launch X-431 SmartLink C 2.0 Heavy Duty Truck Diagnostic Module
ProLaunch X-431 SmartLink C 2.0 Heavy Duty Truck Diagnostic Moduleduct Description:
New Launch X-431 SmartLink C 2.0 Heavy Duty Truck Diagnostic Module X-431 SmartLink C HD (X-431 SmartLink C Heavy-Duty Diagnostic Module) is a Vehicle diagnostic interface mainly for commercial vehicles. With the cutting-edge dual processor, the X-431 SmartLink C HD is qualified for the majority of commercial vehicles maintenance requests. The SmartLink C HD will enable user with X-431 PRO3S+, X-431 V+ V4.0, etc. to work on both passenger and commercial cars.
Diagnostic Tools From Launch with Product Number: sk23261
This Weight Product: 6500g
Ip Restriction (works only in Middle East and Africa Except South Africa )
Launch X-431 SmartLink C 2.0 is a heavy-duty vehicle diagnostic module developed by Launch Company based on Linux system, dual processor Cortex-A7+Cortex-M7, 8G storage, 256M storage, 320*480 resolution. It supports Bluetooth, Wi-Fi, USB and other communication methods, and can be used with X-431 PRO3S and PRO5 series.
It also support full system fault diagnosis, with functions such as code reading, code clearing, data stream reading, special functions, and action test. Covering Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engine diagnostic software, it supports trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicle software.
Launch X-431 SmartLink C 2.0 Heavy Duty Truck Diagnostic Module Features:
- It supports super remote diagnosis.
- Can be used with X431 V+, X-431 PRO3S and Launch PRO5 series.
- It supports Bluetooth, Wi-Fi, USB and other communication methods
- It supports commercial vehicles, passenger vehicles, new energy and other models.
- Based on Linux system, dual processor Cortex-A7+Cortex-M7, 8G storage, 256M storage, 320*480 resolution
- Update Version of Launch X431 HDIII: The transmission speed is faster and more stable, and the visual operation interface makes it more convenient.
- It also support full system fault diagnosis, with functions such as code reading, code clearing, data stream reading, special functions, and action test
- The heavy-duty truck module is used to expand the configuration of passenger cars equipped with DBScar lower computer to the integrated configuration of passenger and business, and it is mainly supporting commercial vehicles.
- Covering Vehicles: Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engine diagnostic software, it supports trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicle software.
Launch Smartlink C Feature:
Work as a VCI (Vehicle Communication Interface)
Work as a Local J2534 PassThru Device
Work as a Remote J2534 PassThru Device
LAUNCH X431 HDIII VS Launch X-431 SmartLink C 2.0
| Functions Comparison | |
| LAUNCH X431 HDIII Heavy-duty Truck Diagnostic Module | X-431 HD III is a heavy-duty vehicle diagnostic module based on Android system developed by Launch Company. It supports Bluetooth, Wi-Fi, USB and other communication methods. It can be used with X-431 PRO 3S or X-431 PAD III, and is suitable for 12V and 24V models. Covers engine software for Cummins, Bosch, Weichai, Yuchai, Xichai, Chaochai, etc., as well as software for more than 100 global vehicle models such as Dongfeng Commercial, Foton Commercial, FAW Jiefang, Jiangling, Mercedes-Benz Heavy Truck, Volvo Heavy Truck, Yutong Bus, King Long Bus, etc. . Supports functions such as reading version information, reading fault codes, reading data streams, clearing fault codes, and action testing. |
| Launch X-431 SmartLink C 2.0 Heavy-duty Truck Diagnostic Module | X-431 SmartLink C 2.0 is a new generation heavy vehicle diagnostic module based on Linux system developed by Launch Company. It has dual processors Cortex-A7+Cortex-M7, 8G running memory, 256M storage, and 320*480 resolution. It supports Bluetooth, Wi-Fi, USB and other communication methods, and can be used with X-431 PRO3S, PRO5, and PADV series, and is suitable for 12V and 24V models. Covers engine diagnostic software for Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engines. Supports software for more than 300 vehicle models around the world, including Dongfeng Commercial, Foton Commercial, FAW Jiefang, Jiangling, Mercedes-Benz Heavy Truck, Volvo Heavy Truck, Yutong Bus, King Long Bus, etc. Supports functions such as reading version information, reading fault codes, reading data streams, clearing fault codes, and action testing. Supports super remote diagnosis. |
The SmartLink C system consists of the following two parts:
1.SmartLink Service Platform — For binding the SmartLink C dongles and posting the remote repair orders (*Note: Orders can be submitted only after the SmartLink C dongle is successfully bound)
2. SmartLink C Dongle — Connects with vehicle’s Data Link Connector (DLC) to obtain vehicle information before submitting repair orders.
Note: LAUNCH X-431 HD SmartLink C 2.0 Module cannot be used alone. It only works with LAUNCH Tablet of X431 V+, X431 PRO3, X-431 PRO3S Series.
Launch X-431 SmartLink C 2.0 Heavy Duty Truck Diagnostic Module 88 supported software list:
X431, JCB X431, Renault Heavy Vehicle X431, IRIZAR Heavy Vehicle X431, Zhongtong Bus (ZHONGTONG BUS) X431, USAFORD Diesel Version X431, AISIN Heavy Vehicle
X431, Yutong Bus X431, Foton Auman X431, IRISBUS Heavy Duty Truck X431, Kenworth Heavy Duty Truck X431, HD_TATA X431, VOITH Heavy Duty Truck
X431, Benz heavy truck X431, JAC heavy truck X431, CREDO heavy truck X431, Stirling heavy truck X431, Doosan engine X431 Perkins
X431, VOLVO Heavy Duty Truck X431, Freightliner Heavy Duty Truck X431, Dongfeng Commercial Vehicle X431, IWC Heavy Duty Truck X431, Peterbilt Heavy Duty Truck X431, DEUTZ
X431, Cummins engine X431, SCANIA X431, Chaochai X431, Xixing heavy-duty vehicle X431, WABCO ABS X431, ZF
X431, ISUZU Heavy Duty Vehicle X431, FUSO X431, Xichai X431, AutoSearch X431, Case X431, KNORR ABS
X431, IVECO Heavy Duty Vehicle X431, ASTRA X431, Quanchai X431, Dachai Heavy Duty Vehicle X431, Steyr X431, Miller
X431, special for Yuchai X431, BREMACH X-431, Dongfeng Yufeng X431, Golden Passenger Car X431, heavy-duty natural gas X431, HD_FLEXICOIL
X431, BOSCH X431, Hino X431, BONLUCK Bus X431, Higer Bus X431, DENSO_Diesel/Diesel Engine X431, Volvo Construction Machinery
X431, Shangchai X431, ERF X431, ALLISON gearbox X431, Ashok Leyland X431, DELPHI X431, MWM heavy duty vehicles
X431,DAF X431,UD Truck/Nissan Diesel X431,DETROIT Engine X431,Yang Diesel Engine X431,King Long Bus X431,Heavy Truck Demonstration Software
X431, FAW Jiefang X431, construction machinery X431, MACK heavy-duty vehicle X431, HD_ABS system X431, diesel version Mitsubishi X431, heavy-duty vehicle standard
X431, Hyundai Heavy Vehicle X431, SETRA Heavy Vehicle X431, WP Diesel Engine X431, Heavy Truck Aftertreatment System X431, Diesel Nissan X431, Commercial Vehicle One-key Scan
X431, Sinotruk X431, SITCAR heavy truck X431, Sunlong Bus (SUNLONG) X431, heavy truck Jiangling X431, diesel version Toyota
X431, MAN X431, NEOPLAN Heavy Duty Truck X431, Sunwin Bus (SUNWIN) X431, Caterpillar Heavy Duty Truck X431, TRAILER Heavy Duty Truck
Launch X-431 SmartLink C 2.0 Heavy Duty Truck Diagnostic Module Specifications:
| CPU | dual processor: Cortex-A7+Cortex-M7 |
| operating system | Linux |
| resolution | 320×480 |
| power | < 6w |
| storage | 8GB |
| memory | 256M |
| working temperature | 0℃~50℃ |
| working voltage | 9V DC—36V DC |
| dimensions | 200mm×110mm×47mm |
| communications | WIFI/Bluetooth/Ethernet |
Launch X-431 SmartLink C 2.0 Heavy Duty Truck Diagnostic Module Package Includes:
1pc x Overseas super remote diagnosis box V2.0 (maintenance end, 98934, no label)
1pc x HD15F to OBDII 16 male integrated test connector, RoHS
1pc x DB15F to HD15F test main line (without DC), L=1000mm, RoHS
1pc x Double clamp power cord (English, without LAUNCH), RoHS
1pc x Cigarette lighter cable (English, no LAUNCH), RoHS
4pcs x Fuse, AC250V/5A, φ5*20mm ROHS
2pcs x Fuse, AC250V/5A, φ6*30mm ROHS
4pcs x Fuse, AC250V/5A, φ5*20mm ROHS
2pcs x Fuse, AC250V/5A, φ6*30mm ROHS
1pc x X431 PAD4HD USB Type A to Type B Cable, RoHS
1pc x Category 6 Gigabit Network Cable (Blue) 15m, RoHS
1pc x SmartLinkC V2.0 Heavy Duty Truck Module Multilingual Quick Start, RoHS
1pc x X431 PAD4HDB15M-CAT-9/CAT 9PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-VOLVO-8/Volvo 8PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-16 Integral diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-Type II OBD-9 Integral Diagnostic Connector, RoHS
1pc x X431 PAD4HDB15M-6 Integral diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-JUMPER-10 heavy truck jumper 10PIN diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-IVECO-30/IVECO 30PIN Integrated Diagnostic Connector, RoHS
1pc x X431 PAD4HDB15M-IVECO-38/IVECO 38PIN Integrated Diagnostic Connector, RoHS
1pc x X431 PAD4HDB15M-MAN-12/Man 12PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-BENZ-14/Benz 14PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-MAN-37/Man 37PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-RENAULT-12/Reynolds 12PIN integrated diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-MITSUBISHI-12+16/FUSO 12+16PIN linear diagnostic connector, RoHS
1pc x X431 PAD4HDB15M-HYUNDAI-16/Hyundai truck 16PIN linear diagnostic connector, RoHS
4pcs x X-431 PAD IV electric control adapter cable 1, RoHS
4pcs x X-431 PAD IV electric control adapter cable 2, RoHS
4pcs x X-431 PAD IV electric control adapter cable 3, RoHS
4pcs x X-431 PAD IV electric control adapter cable 4, RoHS
4pcs x X-431 PAD IV electric control adapter cable 5, RoHS
4pcs x X-431 PAD IV electric control adapter cable 6, RoHS
4pcs x X-431 PAD IV electric control adapter cable 7, RoHS
4pcs x X-431 PAD IV electric control adapter cable 8, RoHS
4pcs x X-431 PAD IV electric control adapter cable 9, RoHS
1pc xUniversal password envelope (without LAUNCH), RoHS
1pc xSmartLinkC V2.0 Heavy Duty Truck Module Multilingual Quick Start, RoHS
