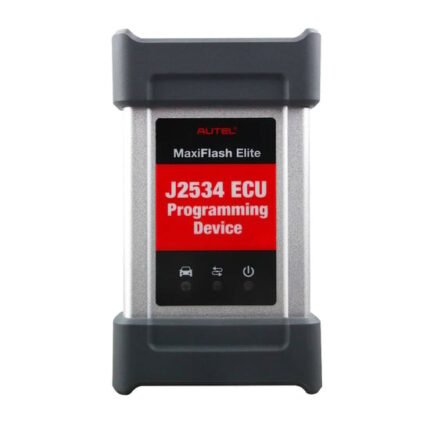

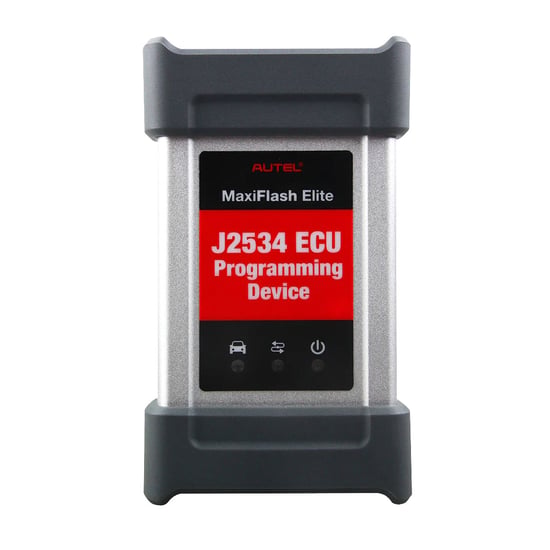

Autel MaxiFlash Elite J2534 ECU Programming Device
Autel MaxiFlash Elite J2534 ECU Programming Device Description:
Autel MaxiFlash Elite J2534 ECU Programming Device A Multi-protocol Pass-thru Vehicle Interface, MaxiFlash Elite Is A Fully Compliant SAE J2534-1 & SAE J2534-2 Device,Specially Designed To Provide Users With Convenient PC Communication And ECU Reprogramming Capabilities On Any Modern Vehicle Diagnostic Bus, Maxiflash Elite Offers The Most Significant Features Desired By OEM Customers: Reliability, Fast Performance And Flexibility.
Diagnostic Tools From Autel with Product Number: MK24017
This Weight Product: 400g
Autel MaxiFlash Elite J2534 ECU Programming Device User Manual
Autel MaxiFlash Elite J2534 ECU Programming Device Features:
- Fully compatible with both SAE J2534-1 and J2534-2 reprogramming standards
- Performs the standard PassThru J2534 functionality
- Compatible with Toyota Techstream, Volvo VIDA, Honda HDS, Jaguar-Land Rover IDS and BMW 3G for OEM diagnostics
- Fast performance ensures quickly reprogramming even the newest controllers
- Wireless with advanced networking functions
- Built-in wireless and data storage
- Rugged design capable of withstanding harsh environments
- Internet updateable
Autel MaxiFlash Elite J2534 ECU Programming Device Specification
| Communications | Wireless BT V2.1 + EDR,USB 2.0 |
| Wireless Frequency | Wireless BT V2.1+EDR, 2.4GHz |
| Input Voltage Range | 12VDC to 24VDC |
| Supply Current | 170mA @ 12VDC 100mA @ 24VDC |
| Operating Temperature | -10°C to +60°C (ambient) |
| Storage Temperature | -20°C to +70°C (ambient) |
| Dimensions | Length: 149 mm (5.87″) Width: 86mm (3.38″) Height: 35 mm (1.28″) |
