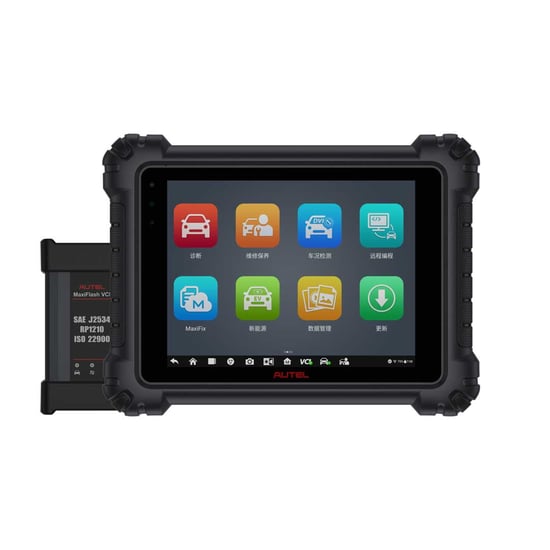

Autel MaxiSYS MS909 Diagnostic Tablet with MaxiFlash VCI/J2534 + Free MaxiVideo MV480 Digital Inspection Videoscope Device
Guaranteed Safe Checkout
Features & Compatibility
Autel MaxiSYS MS909 Diagnostic Tablet with MaxiFlash VCI/J2534 + Free MaxiVideo MV480 Digital Inspection Videoscope Device 2 Years Update Subscription 1 Year Warranty
Product Description:
Diagnostic Tools From Autel with Product Number: MK17656
This Weight Product: 6850g
Note: 2 Years update subscription is included with the device.
Note: Ip Restriction (works only in India, Middle East and Africa ).
The MaxiSYS MS909 is a 9.7-inch touchscreen Android-based advanced diagnostic tablet powered by an Octa-core processor (2.2GHz Quad + 1.8GHz Quad), 128GB memory and features an advanced VCI supporting latest DoIP, D-PDU and Mega CAN vehicle communication protocols. The MS909 features topology module mapping capability for supported vehicles and its Intelligent Diagnostics feature that guides the technician from code to repair to test with detailed repair information and illustrations. The MS909 features a rechargeable Lithium battery providing 8 hours of continues use, and front and rear cameras.
Autel MaxiSYS MS909 Highlights:
- Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
- Automatic system and software updates with real-time push message notifications via internet
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
Autel MaxiSYS MS909 DIAGNOSTICS FUNCTIONS:
- 0 OE-LEVEL COVERAGE US/AS/EU 1996+
- AUTOMATIC DETECTION
- DTC ANALYSIS & FAULT CODE SOLUTIONS
- DTC TROUBLE SHOOTING
- LIVE & FREEZE FRAME DATA
Autel MaxiSYS MS909 SERVICE FUNCTIONS
- ABS BLEEDING
- ESP SENSOR CALIBRATION
- BMS (BATTER MONITORING SYSTEM) RESET
- OIL RESET
- ELECTRIC PARKING BRAKE (EPB)
- TIRE PRESSURE MONITORING SYSTEM (TPMS)
- BATTERY MANAGEMENT SYSTEM
- DIESEL PARTICLE FILTER (DPF)
- IMMOBILIZER (IMMO)
- STEERING ANGLE SENSOR (SAS)
- FUEL INJECTORS CORRECTION
- RESET THE HIGH PRESSURE FUEL PUMP LEARNED VALUES
- FUEL INJECTORS CORRECTION
- LDWS (LANE DEPARTURE WARNING SYSTEM) CAMERA ALIGMENT
…and more
Autel MaxiSYS MS909 MAXIFLASH VCI
PROGRAMMING CAPABILITY
The MaxiFlash VCI device is a D-PDU, SAE J2534 & RP1210 compliant
PassThru programming interface device. Using the updated OEM software, it is capable of replacing the existing software/firmware in the Electronic Control Units (ECU), programming new ECUs and fixing software-controlled drivability issues and emission issues.
COMMUNICATION CAPABILITY
The MaxiFlash VCI device supports Bluetooth (BT), Wi-Fi, and USB communications. It can transmit vehicle data to the tablet with or without a cable connection. In open areas, the working range of the transmitter through BT communication is up to 328 feet (about 100 m). The working range of 5G Wi-Fi is up to 164 feet (50 m). If the signal is lost due to being taken out of range, communication will be restored once the tablet is within range.
Autel MaxiSYS MS909 Specifications
| Operating System | Android 10.0 |
| Processor |
Qualcomm 660 Octa-core Processor (2.2GHz Quad-core A73 + 1.8GHz Quad-core A53) |
| Memory | 4GB RAM & 128GB On-board Memory |
| Display | 9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen |
| Connectivity |
|
| Camera |
|
| Sensors |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
| Audio Input/Output |
|
| Power and Battery |
|
| Input Voltage | 12V/1.3A Adapter |
| Operating Temperature | 0 to 50°C (32 to 122°F) |
| Storage Temperature | -20 to 60°C (-4 to 140°F) |
| Dimensions(W x H x D) | 304.4 mm (11.98″) x 227.8 mm (8.97″) x 42.5 mm (1.67″) |
| Weight | 1.66kg (3.66 lb.) |
| Protocols | DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2), CAN FD. |
Autel MaxiSYS MS909 Package Content:
- 1pc x Maxisys MS909
- 1pc x MaxiFlash VCI
- 1pc x Main Cable V2.0
- 1pc x USB 2.0 Cable V2
- 1pc x AC/DC Adapter(12V)
- 1pc x Cigarette Lighter
- 1pc x Light Fuse 6x30mm 2 PCS
- 1pc x Clipper Cable
- 1pc x Quick Reference Guide
- 1pc x Packing List
- 1pc x Soft Cloth
- 1pc x Carrying Case
Extra Details:
Accessories Products
- Autel MS909 / MS919 / Ultral EV Diagnostics Upgrade Kit includes EVDiag Box
- Autel MaxiSYS MSOBD2KIT Non-OBDII Adapter with cables for MaxiSys Ultra, MS919 and MS909
- Autel 1 Year Update Subscription For MaxiSYS MS909
- Autel Replacement Main OBD II Cable for Autel MaxiSYS MS919, MS909, MS909CV, Ultra
- Autel Replacement Main OBD II Cable for Autel MaxiSYS MS909
- Autel TCAN003 Tesla Diagnostic Adapter Cables For Tesla S, X, Y, and 3 Model Vehicles
- Autel Replacement Power Charger for Autel MaxiSYS MS909
