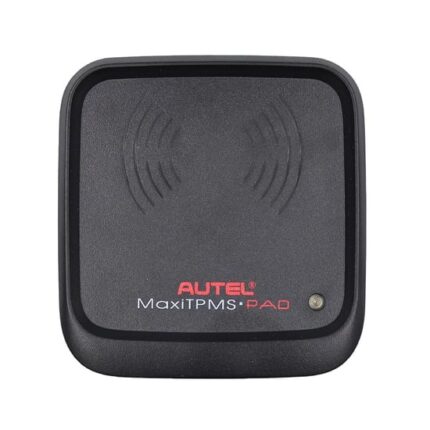

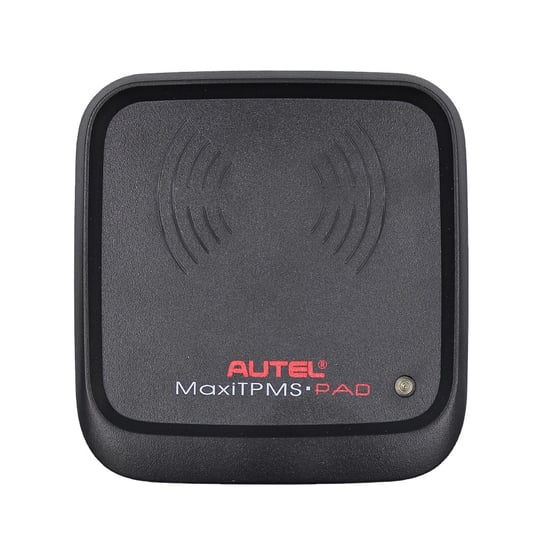

Autel MaxiTPMS PAD Sensor Programming Handheld Accessory Device
Guaranteed Safe Checkout
Features & Compatibility
Autel MaxiTPMS PAD Sensor Programming Handheld Accessory Device to Diagnose OE TPMS Sensors to Program MX-Sensor
Product Description:
New Autel MaxiTPMS PAD Sensor Programming Handheld Accessory Device to Diagnose OE TPMS Sensors to Program MX-Sensor
Key Programming / ECU Diagnostics Tools Diagnostic Tools From Autel with Product Number: MK17359
This Weight Product: 275g
Specs:
Manufacturer: Autel
Condition: New
Note: Not compatible with Autel MX-sensor version E
Top 8 Reasons to Get MaxiTPMS PAD:
- Easy-to-use PC software
- Self contained PC operation
- Make/model/year selection allows for correct sensor replacement
- Direct reading from sensor for quick programming
- No need for vehicle relearns
- Ideal for mechanically broken sensors
- Can automatically create ID numbers compatible with the vehicle
- Runs from PC USB power, no batteries required
It is a simple tool which makes MX-sensor programming much faster and easier in 3 simple steps:
- Load the software on the PC.
- Connect the PAD to the PC.
- Program MX-Sensor.
MaxiTPMS PAD Specifications:
- Power: 5V/350mA
- Storage Temperature: -40℃ to +150℃
- Operating Temperature: -40℃ to +85℃
- Operating Frequency: 315MHz & 433MHz
- Dimensions (W x H x D): 98*103*24.7mm
X
| Comparison | TS608 | MS906 TS | TS601 | TS508 | TS501 | TS408 | TS401 | TPMS PAD | |
|---|---|---|---|---|---|---|---|---|---|
| TPMS function | |||||||||
| Quick Mode & Advance Mode | X | ||||||||
| Activate TPMS sensors | X | X | X | X | X | X | X | X | |
| Read sensor data | X | X | X | X | X | X | X | X | |
| TPMS diagnose, one step for complete TPMS health check | X | X | X | X | X | ||||
| Read/clear TPMS DTCs; on-screen DTC description | X | X | X | X | X | ||||
| Scan TPMS sensor ID and copy ID into MX-Sensor | X | X | X | X | X | X | X | X | |
| Manual input OE ID into MX-sensor | X | X | X | X | X | X | X | X | |
| Program MX-Sensor by auto creating sensor ID | X | X | X | X | X | X | X | X | |
| Read Sensor ID by OBD and copy ID into MX-Sensor | X | X | X | X | X | ||||
| Relearn by OBD function | X | X | X | X | X | ||||
| Relearn procedure guide on the tool | X | X | X | X | X | X | X | ||
| Check Key FOB | X | X | X | X | X | X | |||
| Read TPMS live data | X | X | X | ||||||
| Tire Type/Pressure selection | X | X | X | X | |||||
| Other TPMS special functions | X | X | X | ||||||
| TPMS Toolkit (other function) | X | ||||||||
| Diagnostic function | |||||||||
| Basic OBDII code reader | X | X | X | ||||||
| Read/clear codes for all electronic systems | X | X | |||||||
| Support all 10 test modes of the latest J1979 OBDII test specs | X | X | X | ||||||
| Enhanced OBDII Mode 6 | X | X | X | ||||||
| Display live data in text, graph & analog for easy data review | X | X | |||||||
| Relearn parking brake pad after replacement; | X | X | |||||||
| Reset Steering Angle Sensor (SAS); | X | X | |||||||
| Reset service mileage and service intervals; | X | X | |||||||
| Forced regeneration and adjusting injectors; | X | X | |||||||
| Support battery registration and reset | X | X | |||||||
| Support IMMO functions | X | X | |||||||
| Complete diagnostic function | X | ||||||||
| Tool features | |||||||||
| Built-in rechargeable li-ion battery | X | X | X | X | X | X | X | ||
| Strong housing with protective rubber boot | X | X | X | X | X | X | X | ||
| Print TPMS sensor data via PC | X | X | X | X | X | X | X | X | |
| Internet updatable | WIFI | WIFI | SD card | USB | SD card | USB | USB | USB | |
| Multilingual support | X | X | X | X | X | X | X | X | |
| Historical test records | X | X | X | X | X | X | X |
Autel MaxiTPMS PAD Sensor Programming Function List US
Autel MaxiTPMS PAD Sensor Programming Function List EU
Autel MaxiTPMS PAD Sensor Programming Function List EU
Package Including:
1pcs x Autel MaxiTPMS PAD TPMS Sensor Programming Accessory Device
