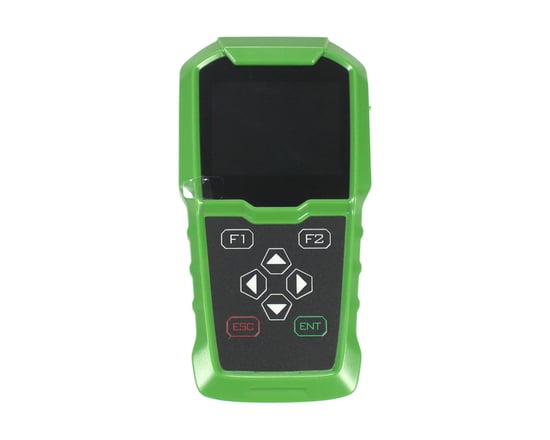

OBDStar H105 Device, Immobilizer And Cluster Calibrate For KIA / Hyundai

OBDStar H105 Device

Product Description:

Key Programming / ECU Diagnostics Tools From OBDSTAR with Product Number: MK5790
This Weight Product: 500g

OBDStar H105 Specs:

Manufacturer: OBDSTAR
Condition: New

OBDSTAR H105 is designed to program auto key and calibrate cluster via OBD for Hyundai and Kia vehicles. It features in programming 46 chip ordinary key and 46/47/8A chip smart key, as well as reading pin code for all series models.

OBDSTAR H105 has a full coverage of vehicles, please check content below or the attachment for the IMMO and cluster calibration list.

OBDSTAR H105 Feature:

• Program 46 chip ordinary key
• Program 46/47/8A chip smart key
• All Series models pin code reading
• Be available to auto key programming and cluster calibrate via OBD.
• Update via TF card at any time.
• Adopt updated hardware and appearance design.

OBDStar H105 Hardware Parameter:

• Dimension: 156mm(L)*86mm(W)*28mm(H)
• CPU: Cortex M3
• Power Supply: DC12V
• Operation Power: DC12V
• Operation Temperature: -20-60℃
• Display Screen: 320X240 TFT

obdstar-h105-odometer-adjustment-supported-car-list

obdstar-h105-immobilizer-supported-car-list

OBDStar H105 Package includes:

• 1pc x OBDSTAR H105 main unit
• 1pc x OBD Main cable
• 1pc x User’s Manual
• 1pc x TF Card Reader
