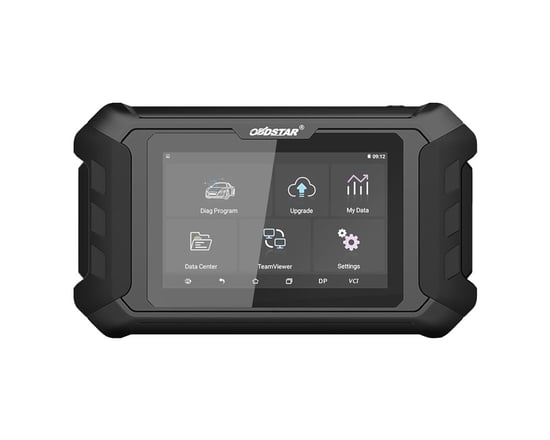

OBDStar X300 PRO4 Programming Device

OBDStar X300 PRO4 Programming Device

Product Description:

Key Programming Tools From OBDSTAR with Product Number: MK5829
This Weight Product: 3000g

OBDStar X300 PRO4 Programming Device Specs:

Manufacturer: OBDSTAR
Condition: New
Color: Black

X300 Pro4 is an all-purpose immobiliser programming device meticulously designed by OBDSTAR for locksmith.
The device inherits the automobile immobiliser programming technology from OBDSTAR with a lot of advantages of early start,
wide model coverage, fast programming speed and special features All-in-one machine structure,

more convenient to use full optimization hardware, running more stable, faste A. and smoother.

OBDSTAR X300 Pro 4 Programmer Function List:

• Programming Keys
• Erase Keys
• Programming Remote
• Read Key Numbers
• Pincode Reading
• EEPROM Chip Read
• OBDII Diagnosis

OBDSTAR X300 Pro 4 Programmer Support Car Models List:

Europe:

• BMW, BENZ, BORGWARD, PEUGEOT/CITROEN/DS ,DACIA, FIAT, JAGUAR, LANCIA, LANDROVER, OPEL , REN,SMART
• VOLVO,IVECO,VW/AUDI/SKODA/SEAT

America:

• FORD,GM

China:

• BAIC, BESTURN, BISU, BRILLIANCE, BYD, CHANGAN, CHANGHE, CHERY, COWIN, DFFENGSHEN, DFFG, DFLIUZHOU, ENRANGER, FOTON
• GEELY, GREATWALL, HAFEI, HANTENG, HAWTAI, HIMIKO, ZZNISSAN, HNMAZDA, HONGQI, HUANGHAI, JAC, JIABAO, JMC, LIFAN, LUFENG
• LUXGEN, MAXUS, QNLOTUS, QOROS, ROEWE, SGMW, SWM, SOUEAST, TJFAW, TRAUM, TRUMPCHI, XENIA, YEMA, ZD, ZHONGXING, ZOTYE
• ZZMAZDA, CHANGFENG

Japan:

• HONDA, ISUZU, MAZDA, MITSUBISHI, NISSAN, SUBARU, SUZUKI, TOYOTA/LEXUS

Korea

• HYUNDAI,KIA,SANGYONG

Note: It does not support Lamborghini/ Maserati/ Ferrari/ Bentley/ Alfa Romeo/ Abarth

Comparision between X300 PRO 4 and X300 DP PAD Plus:

	Function	Prouduct Photo
		X300DP Plus	X300 Pro 4	Remark
		Available Or Not
Software (Immo)	Programming Keys	√	√
	Erase Keys	√	√
	Programming Remote	√	√
	Read Key Numbers	√	√
	PIN Code Reading	√	√
	EEPROM Chip Read	√	√
	OBDII Diagnosis	√	√
	Cluster Calibration	√	×
	Diagnosis	√	×
	ECU Clone	√	×
	ECU Programming	√	×
	Oil Service Reset	√	×
	Other Special Functions	√	×
	RT100 Remote	√	×
	Luxury Models Coverage	√	×	Lamborghini/ Maserati/ Ferrari/ Bentley/ Alfa Romeo/ Abarth
Specification	Opration System	Android5.1.1	Android5.1.1
	Camera	supported	×
	CPU	Exynos4418 Dual Core ARM Cortex  A9 1.4GHz	RK3128 quad-core, ARM Cortex A7@1.2Ghz
	Battery	3700mA, rechargeable polymer lithium battery	2600Ma lithium ion
	Extension Memory Card	32G Micro SD(TF) card supported	32G Micro SD(TF) card supported
	Storage Capacity	32GB	16GB
	LCD	8.0 inch	5.0 inch
	LCD resolution	1280*800	800*600
	Touch screen	Capacitive touch screen	Capacitive touch screen
	Wi-Fi	supported	supported
	Working Temperature	-10℃~55℃（14℉~131℉）	-20℃~55℃（14℉~131℉）
	Storage Temperature	-20℃~70℃（-4℉~158℉）	-20℃~70℃（-4℉~158℉）
	Weight	about 1.0kg	about 700g
	Dimension	254mm*174mm*35mm	140mm*89mm*18mm
Accessory

OBDSTAR X300 Pro 4 Programmer Specifications:

OBDSTAR X300 Pro 4 Programmer Package Contents:

1. 1pc x  X300 Pro 4 Unit
2. 1pc x  Main cable
3. 1pc x  Charger
4. 1pc x  OBDII-16
5. 1pc x  HYUNDA-10
6. 1pc x  KIA-20
7. 1pc x  HONDA-3
8. 1pc x  P001 Programmer
9. 1pc x C001 Board
10. 1pc x  C002 Board
11. 1pc x  W001
12. 1pc x  Tool Box
13. 1pc x  OBDSTAR Certificate
14. 1pc x  X300 Pro 4 Fast Guide Manual
15. 1pc x  Packing List
